Engineering Paradigm Shifts in High-Performance Internal Combustion: The Honda V3R 900 E-Compressor and the Future of Voluntary Volumetric Efficiency

The global motorcycle industry is currently navigating a pivotal transition where the narrative of progress is increasingly dominated by electrification and the phased retirement of internal combustion engines (ICE). However, the unveiling of the Honda V3R 900 E-Compressor Prototype at EICMA 2025 serves as a profound technical counter-narrative, suggesting that the zenith of combustion technology has not yet been reached.¹ This machine represents more than a new model; it is a synthesis of historical racing pedigree, cutting-edge forced induction, and a radical rethink of engine architecture.

By introducing the world’s first electronically-controlled compressor for motorcycles, Honda has effectively decoupled the relationship between engine speed and boost pressure, a move that fundamentally alters the potential of mid-displacement powerplants to compete with flagship liter-class machines.¹ The V3R 900 is the physical manifestation of Honda’s “2030 Vision,” a strategic framework designed to balance “guaranteed thrill” with “reassuring peace of mind”.¹

The Historical and Mechanical Context of the V3 Architecture

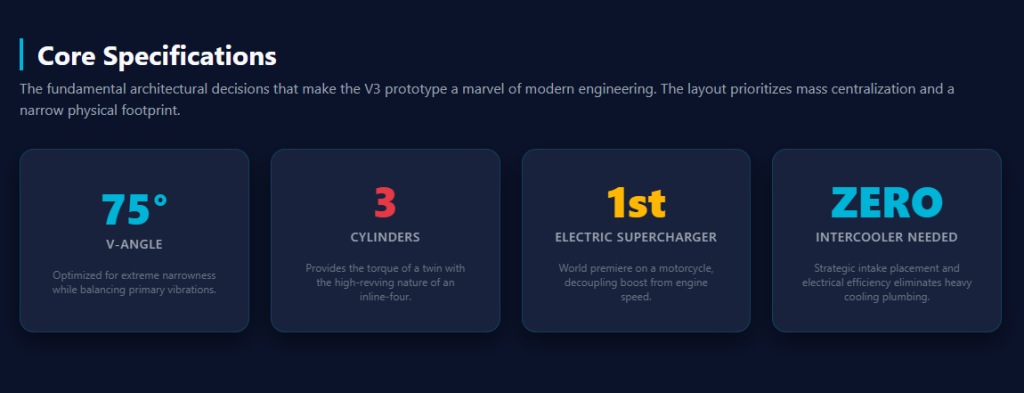

The selection of a V3 configuration is a deliberate revival of a rare and technically challenging layout that sits at the intersection of Honda’s most successful racing eras. Historically, the V3 was the weapon of choice during the two-stroke dominance of the 1980s. The 1983 MVX250F and the 1985 NS400R were pioneering examples of how a V3 could offer the narrowness of a V-twin with the power density approaching that of a four-cylinder.² The NS400R, in particular, was celebrated for its lightweight chassis—being approximately 100 pounds lighter than its contemporary rivals—while producing a healthy 72 horsepower.² In the premier racing class, the Honda NS500 Grand Prix bike utilized a V3 to achieve a competitive balance of mass centralization and aerodynamic efficiency, a legacy that the V3R 900 now translates into a four-stroke context.²

In modern engineering, the V3 layout addresses the physical limitations of the popular inline-three and V4 configurations. While inline-threes are valued for their characterful torque, they are inherently wider across the cylinder head. Conversely, a V4 provides exceptional power but introduces significant complexity, weight, and length.⁷ The V3R 900 utilizes a 75-degree bank angle, an angle reminiscent of the RC211V MotoGP racer’s 75.5-degree V5 and the VFR1200F’s 76-degree V4.¹⁰ This specific geometry allows for a compact overall length while creating sufficient “V” space to house the intricate intake plumbing required for a forced-induction system.¹⁰

Model	Configuration	Cycle	Bank Angle	Primary Advantage
NS400R	V3	2-Stroke	90°	Lightweight/Agility 3
RC211V	V5	4-Stroke	75.5°	Traction/Power Delivery 10
VFR1200F	V4	4-Stroke	76°	High-Speed Stability 10
V3R 900	V3	4-Stroke	75°	Narrow Profile/E-Boost Space 10

The V3R 900 positions two cylinders in the forward bank and a single cylinder in the rear bank.² This arrangement provides a unique benefit in terms of rider ergonomics, as the engine becomes exceptionally narrow between the rider’s knees, mirroring the feel of a V-twin.⁷ Furthermore, the inertia forces of the two front pistons moving in opposition to the single rear piston can achieve an excellent state of balance, potentially eliminating the need for a heavy balancer shaft, which is a common necessity in inline-three engines.⁹

The E-Compressor: Decoupling Boost from the Crankshaft

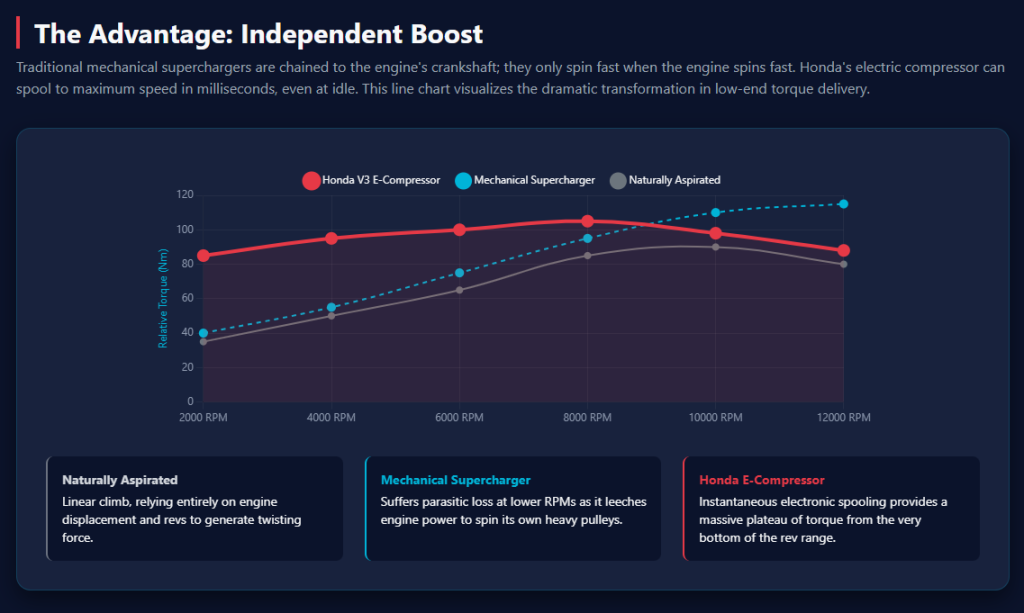

The defining innovation of the V3R 900 is the E-Compressor, an electronically driven supercharger that bypasses the traditional limitations of both turbocharging and mechanical supercharging. In traditional forced induction, there is an unavoidable dependency on engine speed. Turbochargers require exhaust gas velocity (and thus RPM) to spool up, leading to the phenomenon of “turbo lag”.¹³ Mechanical superchargers, while providing instant response, are driven by gears or belts connected to the crankshaft, which creates parasitic drag and ties boost pressure directly to engine RPM.¹³

The Honda E-Compressor utilizes a high-speed electric motor to spin an impeller, allowing the engine management system to dictate boost pressure independently of engine speed.² This means the V3R 900 can deliver maximum boost at very low RPM, providing immediate, “highly responsive” torque from the moment the throttle is cracked.¹ The Garrett-sourced unit is compact enough to be positioned just behind the steering head and in front of the airbox, a location that optimizes mass centralization.¹⁸

Thermodynamic and Electrical Efficiency

A critical technical advantage of the E-Compressor is the lack of a required intercooler.² Because the system can precisely modulate boost levels and does not rely on high-temperature exhaust gases for power, it avoids the extreme intake temperatures associated with traditional turbocharging. This significantly reduces the complexity and weight of the intake tract.²

The electrical requirements of such a system are non-trivial. Data from similar automotive systems indicates that an electric compressor can draw up to 5kW of power to reach 90% of its maximum speed in under 0.3 seconds.²⁰ For a 900cc motorcycle application, it is estimated that a peak draw of 1,700W to 2,500W would be sufficient, a figure that is within the capability of modern high-output alternators, such as those found on the Honda Gold Wing which produce approximately 1,550W.²⁰ This system effectively allows a 900cc engine to deliver the volumetric efficiency of a 1,200cc engine, essentially “cheating” the displacement limit by forcing more oxygen into the combustion chambers than atmospheric pressure would allow.¹

This formulaic representation of the performance gains highlights how the V3R 900 can achieve its stated goal of matching 1,200cc performance in a 900cc package.¹ The result is a machine that offers the “top-end rush” of a superbike with the “low-end grunt” of a large-capacity cruiser, all while remaining lighter and more compact.⁸

Chassis Engineering and the “Non-rail Roller Coaster” Concept

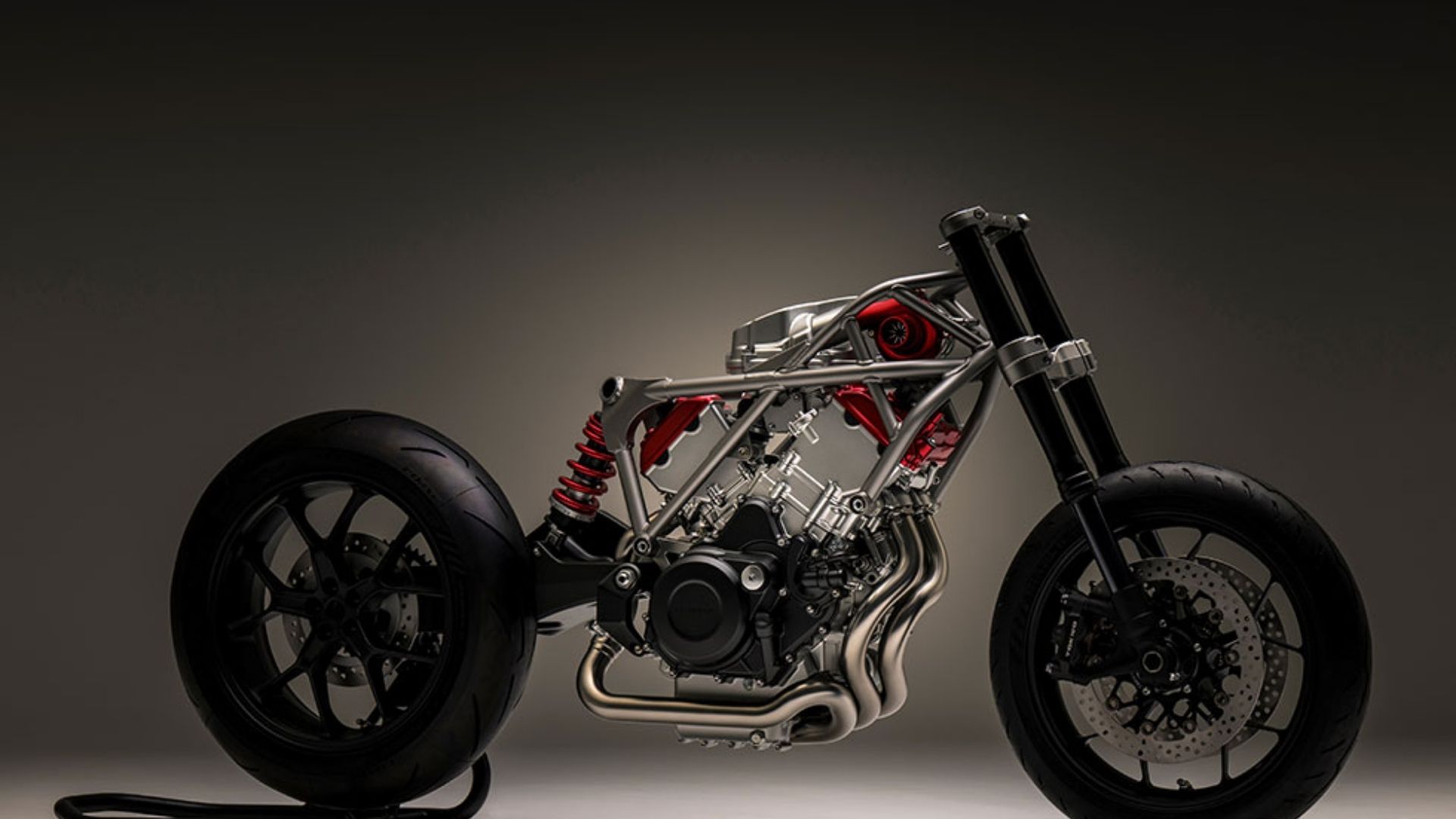

The transition from the bare-frame concept shown at EICMA 2024 to the full “V3R 900 E-Compressor Prototype” at EICMA 2025 revealed a sophisticated chassis designed to manage the unique stresses of a forced-induction triple.⁷ The development concept, “Non-rail Roller Coaster,” suggests a vehicle that offers the adrenaline of a fixed-track amusement ride—meaning predictable, overwhelming acceleration—paired with the freedom of a motorcycle.¹

The prototype utilizes a steel trellis frame where the engine acts as a stressed member, a design choice that prioritizes rigidity and weight reduction over the more traditional (and wider) aluminum twin-spar frames.¹⁰ The use of a single-sided swingarm is not only an aesthetic tribute to the VFR and RC30/45 heritage but also a functional choice that facilitates the routing of the massive three-exit exhaust system designed to comply with stringent noise and emission regulations.¹¹

Asymmetry and Functional Styling

The styling of the V3R 900 is dictated by its breathing requirements. The bodywork is aggressively asymmetrical, most notably in the air intake configuration. A massive intake scoop on the rider’s right-hand side of the fuel tank is designed specifically to feed the electric compressor.¹⁰ This “crab-like” appearance, where one side is significantly more muscular than the other, serves as a visual indicator of the technology beneath the skin.¹⁰

The suspension and braking components are equally high-end, featuring fully adjustable inverted forks and radial-mounted Nissin calipers paired with wave-type discs.¹⁰ The presence of a six-axis Inertial Measurement Unit (IMU) facilitates Cornering ABS and advanced traction control, ensuring that the “Non-rail Roller Coaster” remains “reassuring” for the rider even when the compressor is at full chat.¹⁹

Patent Insights: Optimization of the V-Engine Platform

Honda’s commitment to the V3R 900 is further supported by specific patent filings (DE 102025118963 A1 and DE 102025120142 A1) that address the granular difficulties of V-engine architecture.²⁶ These patents focus on two key areas: lubrication and thermal management.

Advanced Lubrication and Oil Management

High-performance V-engines typically suffer from complex oil routing because the two cylinder banks create separate “auxiliary chambers” where oil can pool. Traditional designs often require multiple scavenging pumps, which adds weight and mechanical complexity.²⁶ Honda’s patented solution involves a single suction oil pump that draws oil from one chamber and, via a connecting passage, also clears the other.²⁶ This “clever routing” reduces the number of components and ensures that the engine remains narrow and light—critical for a streetfighter-style motorcycle.²⁶

Sequential Cooling Strategy

Thermal management is a significant hurdle for any forced-induction engine, particularly one where the rear cylinder is shielded from direct airflow. Honda’s cooling patent describes a specific coolant circulation sequence:

1. First Cylinder Block (Front): Receives the coldest coolant directly from the pump.²⁶
2. Second Cylinder Block (Rear): The coolant then flows to the rear bank, which requires more cooling capacity due to its location behind the front cylinders.²⁶
3. Cylinder Heads: Finally, the coolant enters the cylinder heads, which are the hottest parts of the engine.²⁶

This sequential approach ensures faster and more even warm-up times, which is essential for meeting Euro 5+ and future Euro 6 emission targets, as the catalytic converter can be brought to operating temperature more quickly.²⁶

Comparative Analysis: Honda E-Compressor vs. Kawasaki Mechanical Supercharger

The V3R 900 inevitably invites comparison with the Kawasaki Ninja H2, the only other contemporary forced-induction motorcycle. However, the technical philosophies represent two different eras of engineering.

Feature	Honda V3R 900 E-Compressor	Kawasaki Ninja H2
Induction Type	Electronic Centrifugal Compressor 1	Mechanical Centrifugal Supercharger 16
RPM Dependency	Independent (Full boost at any RPM) 1	Dependent (Boost builds with RPM) 16
Engine Layout	900cc V3 1	998cc Inline-4 19
Parasitic Loss	Very Low (Electrical draw only) 8	High (Mechanical drag on crankshaft) 13
Intercooler	Not Required 2	Required (on H2R/highly tuned H2) 13

While the Kawasaki H2 wins in terms of “brute force” peak horsepower (exceeding 200 hp in many configurations), the Honda V3R 900 aims to win in “instant response” and efficiency.¹⁹ The ability of the E-Compressor to be switched off entirely when not needed—and to build boost instantly from 2,000 RPM—gives the Honda a significant advantage in real-world street riding and fuel economy.⁸ Furthermore, KTM has filed patents for a “hybrid” supercharger that combines both mechanical and electric drives, suggesting that Honda’s direction is one that other major manufacturers are now scrambling to follow.¹⁶

Branding Strategy: The “Flagship WING” and the EV Transition

Parallel to the technical development of the V3R 900, Honda has introduced a significant overhaul of its corporate identity to clearly distinguish its future products. This strategy involves the creation of three distinct logos that separate electric mobility from internal combustion performance.³⁰

• Electric Models (WN7, etc.): These models will feature a minimalist, “quietly confident” wordmark designed to signify sustainability and simplicity.³⁰
• Flagship ICE Models (V3R 900, Fireblade, Gold Wing): These will carry the newly designed “Flagship Wing” emblem.¹ This logo replaces the traditional red-and-silver design with a monochromatic silver wing on a black background.³⁰
• Mass-Market ICE Models: Mid-range and commuter bikes will retain the familiar red-silver wing that has defined the brand since the 1940s.³⁰

The fact that the V3R 900 was the global debut platform for the Flagship Wing logo confirms its status as a “halo” product.³⁰ By adopting this tiered branding, Honda is signaling that while EVs are the future of mobility, high-performance internal combustion remains a “premium tier” of the riding experience—a luxury that warrants its own specialized visual identity.³⁰

Global Market Outlook and Production Timeline

Honda’s 2030 Vision is not a localized strategy; the V3R 900 is intended for a global audience. Trademark filings for “V3R” and “V3R E-Compressor” have already been confirmed in both Europe and the United States.²⁴

European and North American Markets

The European market is the primary target for the V3R, with a production version expected to be available by 2027.² European riders have traditionally shown the highest demand for sophisticated triples and high-performance nakeds. The V3R 900’s combination of agility, narrow profile, and supercharged torque makes it a direct competitor to machines like the Yamaha MT-09 SP and the Triumph Street Triple 765.² In the United States, the trademark filings suggest that the machine will likely be marketed as a “high-tech disruptor,” a role previously played by models like the NR750 and the original CBX1000.⁸

The Indian Market: Premium “BigWing” Strategy

The Indian market holds a unique position in Honda’s global hierarchy. Honda Motorcycle & Scooter India (HMSI) has been aggressively expanding its “BigWing” premium network, which now comprises over 150 showrooms nationwide.³⁵ These dealerships are tiered into “BigWing Topline” (which sells the full 200cc-1800cc range) and standard “BigWing” (focused on the 200cc-500cc mid-size segment).³⁵

The V3R 900, should it reach India, would likely be a CBU (Completely Built-Up) flagship sold through the Topline dealerships. While it would be a high-cost “exotic,” its introduction would serve to bolster Honda’s image as a technology leader in a market where brands like Triumph and KTM are increasingly dominant in the premium segment.³⁷ HMSI has already seen success with premium CBU launches like the NX500, and the V3R 900 would represent the ultimate pinnacle of this “Fun” model lineup.³⁵

Conclusion: Redefining the Zenith of Combustion

The Honda V3R 900 E-Compressor Prototype is a testament to the fact that internal combustion technology is not merely on life support, but is entering a new era of hyper-efficiency and emotional engagement. By decoupling intake pressure from engine speed, Honda has solved a century-old engineering puzzle, allowing a mid-sized 900cc triple to deliver the visceral performance of a 1,200cc machine without the associated weight, width, and emissions penalties.¹

This project serves as a “milestone in ongoing challenges,” showcasing that the “joy of mobility” is deeply rooted in engineering audacity.¹ Whether it is the 75-degree V3 angle that provides perfect secondary balance, the Garrett electric compressor that eliminates turbo lag, or the “Flagship Wing” branding that elevates the ICE experience to a premium status, every element of the V3R 900 suggests a future where high-performance riding remains central to the human experience.¹ As the production version prepares for a likely late-2026 debut, it stands as a bold statement that Honda engineers never sleep, and that the “power of dreams” continues to find new life in the combustion of gasoline.⁶
