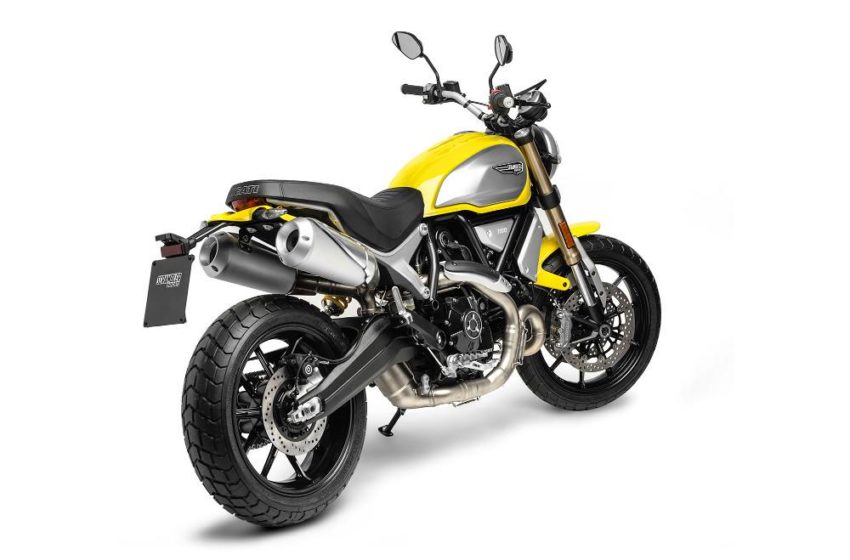

Ducati Scrambler 1100

The Scrambler® 1100 comes with advanced outfitting and equipment. Taking customization as its inspiration, the Scrambler® 1100 Special is a contemporary classic that has the elegance and character of spoke wheels, aluminium mudguards and chrome exhausts.

The new Scrambler® 1100 glorifies the Land of Joy spirit: a motorbike that amplifies the creative disposition of Scrambler in more mature and sophisticated lines, with a solid balance between muscle and compactness. A version that translates the freedom of expression characteristic of the Scrambler universe into superior comfort and unimaginable mastery.

The Scrambler® 1100 comes with advanced outfitting and equipment. 3 Riding Modes and the Ducati Traction Control assure you maximum freedom and easy riding while the ABS Cornering Bosch and 320 mm double disc lets you enjoy the generous torque of the new 1079 cu. cm engine in total safety. Available in two colours: ’62 Yellow and Shining Black

Engine Specs

Type L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement 1,079 cc
Bore x stroke 98 x 71 mm
Compression ratio 11:1
Power* 63 kW (86 hp) @ 7,500 rpm
Torque* 88 Nm (65 lb-ft, 9.0 kgm) @ 4,750 rpm
Fuel injection Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW)
Exhaust 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps

Transmission

Gearbox 6 speed
Ratio 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Primary drive Straight cut gears; Ratio 1.85:1
Final drive Chain; Front sprocket 15; Rear sprocket 39
Clutch Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run

Chassis

Frame Tubular steel Trellis frame
Front suspension Marzocchi fully adjustable Ø45 mm usd fork
Front wheel travel 150 mm (5.9 in)
Front wheel 10-spoke in light alloy, 3.50″ x 18″
Front tyre Pirelli MT 60 RS 120/70 ZR18
Rear suspension Kayaba monoshock, pre-load and rebound adjustable
Rear wheel travel 150 mm (5.9 in)
Rear wheel 10-spoke in light alloy, 5.50″ x 17″
Rear tyre Pirelli MT 60 RS 180/55 ZR17
Front brake 2 x Ø320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment
Rear brake Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment

Dimensions

Wheelbase 1,514 mm (59.6 in)
Rake 24.5°
Trail 111 mm (4.4 in)
Total steering lock 34°
Fuel tank capacity 15 l – (3.96 US gal)
Dry weight 189 kg (417 lb)
Wet weight* 206 kg (454 lb)
Seat height 810 mm (31.9 in)
Max height 1,330 mm (52.4 in)
Max width 895 mm (35.2 in)
Max length 2,190 mm (86.0 in)
Number of seats Dual seat

Equipment

Standard equipment Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket
Colours ’62 Yellow
Shining Black
Warranty and Maintenance
Warranty 24 months unlimited mileage
Maintenance service intervals 12,000 km (7,500 mi) / 12 months
Valve clearance check 12,000 km (7,500 mi)
Emissions and Consumption
Standard* Euro 4
Consumption* 5.2 l/100 km – CO2 117 g/km
